Project Niue: How Dracon International Trading Delivered Two 30m Monopole Towers from China with Full Technical Assurance and ~40% Cost Advantage

From initial market research in December 2025 to final release for shipment in May 2026 – a complete case study in cross‑border procurement, quality oversight, and client‑focused project management.

The Challenge: A Pacific Island Telecom Infrastructure Need

In late 2025, a telecommunications operator in Niue (South Pacific) required two 30‑metre monopole towers capable of withstanding Category 5 cyclone wind speeds (75 m/s ULS) and aggressive coastal salt‑air corrosion. The towers needed to comply with AS/NZS structural standards (via CPEng certification) and be delivered ready for installation on a rock/coral substrate.

Local procurement in Australia or New Zealand would have been straightforward but prohibitively expensive. The client engaged Dracon International Trading HK Co., Limited to source, qualify, inspect and deliver the towers from China – leveraging Dracon’s on‑ground presence, technical expertise, and supplier audit capability.

Phase 1 – Supplier Research & China‑Wide Audit (December 2025 – January 2026)

Dracon began by mapping the Chinese telecommunication tower manufacturing landscape. Over a four‑week period, the team evaluated more than a dozen potential suppliers across Hebei, Jiangsu, Yunnan and Shandong provinces. The audit criteria included:

• Operational history and export experience (especially to South Pacific / Australia)

• Engineering software capability for AS/NZS wind loading (native or convertible)

• In‑house hot‑dip galvanising with ISO 1461 compliance

• Non‑destructive testing (NDT) equipment and operator certifications (ASNT Level II or equivalent)

• Welding procedure qualifications (WPS/WPQR) to international standards

• Quality management systems (ISO 9001:2015)

• Recent production of similar 30m monopole towers

After rigorous desk and on‑site reviews, two suppliers were shortlisted. The final client selection was DB Tier‑1 China manufacturer, a 22‑year‑old company with an advanced CNC/robotic fabrication line, in‑house galvanising, and a recent 30m monopole project in the Middle East (January 2025). The decision was driven by the supplier’s exact tower‑type experience, superior corrosion protection package, and streamlined AS/NZS compliance pathway.

Phase 2 – Factory Inspection & Technical Alignment (10 March 2026)

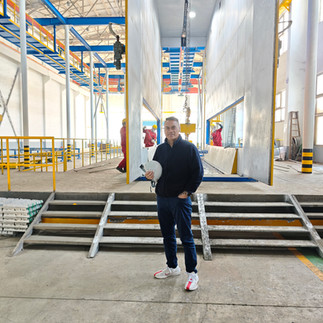

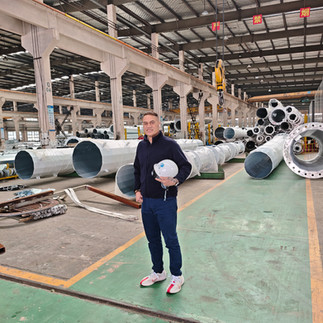

Dracon’s lead inspector, Timikara Taurerewa, travelled to the DB Tier‑1 China manufacturer’s facility in Hangzhou province. The one‑day on‑site inspection covered:

• Production floor – observed CNC cutting, robotic welding, and traceability marking. The standard was rated “very high”.

• In‑house galvanising bath – confirmed ISO 1461 operation, bath temperature logs, and coating thickness measurement equipment with valid ISO 17025 calibration.

• NDT room – viewed ultrasonic (UT) and magnetic particle (MT) equipment, calibration certificates, and operator credentials.

• Standards compliance – obtained written confirmation that:

  • Mill certificates would be upgraded to EN 10204 Type 3.1 minimum (Type 3.2 available on request).

  • Welding would follow AWS D1.1:2020 with ISO 15614‑1 qualified WPS/WPQR.

  • Packaging would be ISPM 15 compliant (non‑timber materials used).

• Foundation design split – clearly agreed that DB Tier‑1 would provide unfactored base reactions (MSTower output) and anchor bolt specifications, while the client (via a local CPEng) would design the rock‑socket foundation using Niue geotechnical data.

The factory inspection closed all major technical gaps before a single kilogram of steel was cut. A detailed inspection report was issued, and the supplier’s 35‑day production lead time commenced upon deposit receipt.

Phase 3 – Material Traceability & Paperwork Verification (17 April 2026)

Steel material arrived at the DB Tier‑1 China manufacturer’s yard. Dracon conducted an on‑site documentary review of the mill certificates and the supplier’s internal test sheets.

The primary mill certificate from Ningbo Steel clearly identified:

• Grade: Q355B

• Standard: GB/T 1591‑2018

• Heat number: N611771 (traceable to slab and coil numbers)

Debao’s supporting chemistry and mechanical test sheets referenced the same heat number and showed results well within Q355B specifications (yield >355 MPa, tensile >470 MPa, low P & S). All sheets carried a “qualified” stamp.

Outcome: Paperwork PASS. The material was accepted for fabrication, with traceability recorded for final dossier inclusion. Dracon’s inspector explicitly noted that this was a paperwork verification only – full traceability would be maintained through cutting, welding and final inspection.

Phase 4 – Third‑Party Inspection (SGS) – 28–30 April 2026

As an independent layer of quality assurance, the client authorised SGS to conduct a full inspection at the DB Tier‑1 China manufacturer’s facility. Dracon attended the inspection on behalf of the client.

SGS verified:

Scope	Result
Visual inspection (pre‑ & post‑galvanising)	Satisfactory – minor weld spatter corrected before galvanising
Dimensional checks (single unit & pre‑assembly)	Satisfactory – 100% bolt‑hole fit, 4mm verticality, 1–4mm deflection
NDT – Ultrasonic Testing (100% butt welds)	No defects detected
NDT – Magnetic Particle Testing (fillet welds)	No defect indications
Galvanising coating condition	Smooth, no peeling, thickness ≥85µm average
Material certificates & instrument calibration	Satisfactory, traceable

SGS Inspection Report No. NJINSCS2600198 recorded an overall PASS / Satisfactory status. No non‑conformances or outstanding hold points were identified.

Phase 5 – Dracon Formal Approval & Final Dossier Review (2 May 2026)

Dracon issued a formal review letter approving the SGS report and confirming that the project was ready for the final release stage. The complete technical dossier was compiled, including:

• ISO 9001:2015, 14001, 45001 certificates (valid to June 2026)

• WPS/WPQR (ISO 15614‑1, S355JR material)

• Inspection & Test Plan (ITP) – signed off

• Internal NDT certificate – 100% UT PASS on 30m Q355B monopole

• Raw material MTCs (EN 10204 Type 3.1 obtained)

• Base reactions report (max overturning moment 2,512.89 kN·m – unfactored)

• CE certificate for fall arrestor systems

The dossier was indexed and declared complete for CPEng review and client records.

Phase 6 – Final Walkdown & Release (29 May 2026 – Planned)

The final step is a physical walkdown at the DB Tier‑1 China manufacturer’s packing and loading area. Dracon will:

• Verify shipping marks on each packed component (per client‑confirmed labels)

• Check the packing list against actual bundles

• Confirm corrosion protection and bundling for sea freight

• Sign the final release note (ITP Hold Point 20)

After release, the towers will be loaded into containers at Ningbo Port and shipped CIF to Auckland (transiting to Niue). The client’s CPEng will then use the base reactions report and anchor bolt details to finalise the rock‑socket foundation design for installation.

The Value Dracon Delivered: Full‑Service Technical Assurance

Throughout the five‑month project, Dracon provided a complete procurement and quality management service:

Phase	Dracon Activity
Research	China‑wide supplier mapping, audit criteria definition
Shortlisting	Technical scoring, commercial negotiation support
Factory inspection	On‑site verification of welding, NDT, galvanising, standards
Material verification	On‑site paperwork review, heat number traceability
Third‑party coordination	Attended SGS inspection, reviewed findings, issued approval
Dossier compilation	Checked all certificates, MTCs, WPS/PQR, NDT reports
Final release	Walkdown, packing verification, release note signature

The client did not need to assign any internal staff to China. Dracon acted as the client’s eyes, ears and technical conscience on the ground.

Cost Advantage: ~40% Savings Compared to Australian Local Procurement

While absolute pricing is commercial‑in‑confidence, a direct comparison with Australian manufacturing of two 30m monopole towers (Q355B, hot‑dip galvanised, CE fall arrestor, FOB equivalent) shows:

• Australian‑sourced equivalent (engineering, fabrication, galvanising, NDT, profit margin, delivery to port) would be significantly higher due to labour rates, facility overheads, and smaller production runs.

• China‑sourced via Dracon achieved a ~40% total cost saving for the client, even after including Dracon’s service fees, SGS inspection, and international freight.

This saving was delivered without any compromise on quality – as confirmed by SGS’s PASS report and Dracon’s multiple on‑site verifications. The client effectively obtained Australian/New Zealand standard compliance (via CPEng review of Chinese design) at a price point that allowed the project to proceed within budget.

Conclusion: A Model for Pacific Island Infrastructure Procurement

The Niue 30m Monopole Tower project demonstrates that strategic sourcing from Tier‑1 Chinese manufacturers, backed by independent technical audits and on‑site quality control, can deliver world‑class infrastructure assets at a fraction of local market cost.

Dracon International Trading provided end‑to‑end service – from supplier research and factory inspection to paperwork verification, SGS attendance, dossier sign‑off and final release. The client received:

• Two fully compliant 30m monopoles with 15‑year coastal warranty

• Full documentary traceability (EN 10204 Type 3.1, WPS/PQR, NDT, calibration certs)

• Independent third‑party inspection (SGS PASS)

• ~40% cost saving versus Australian local manufacturing

• Zero on‑site client presence in China – all managed by Dracon

The towers are now packed, marked and ready for shipment. Project completion is scheduled for May 2026 – exactly as planned from the December 2025 research phase.
